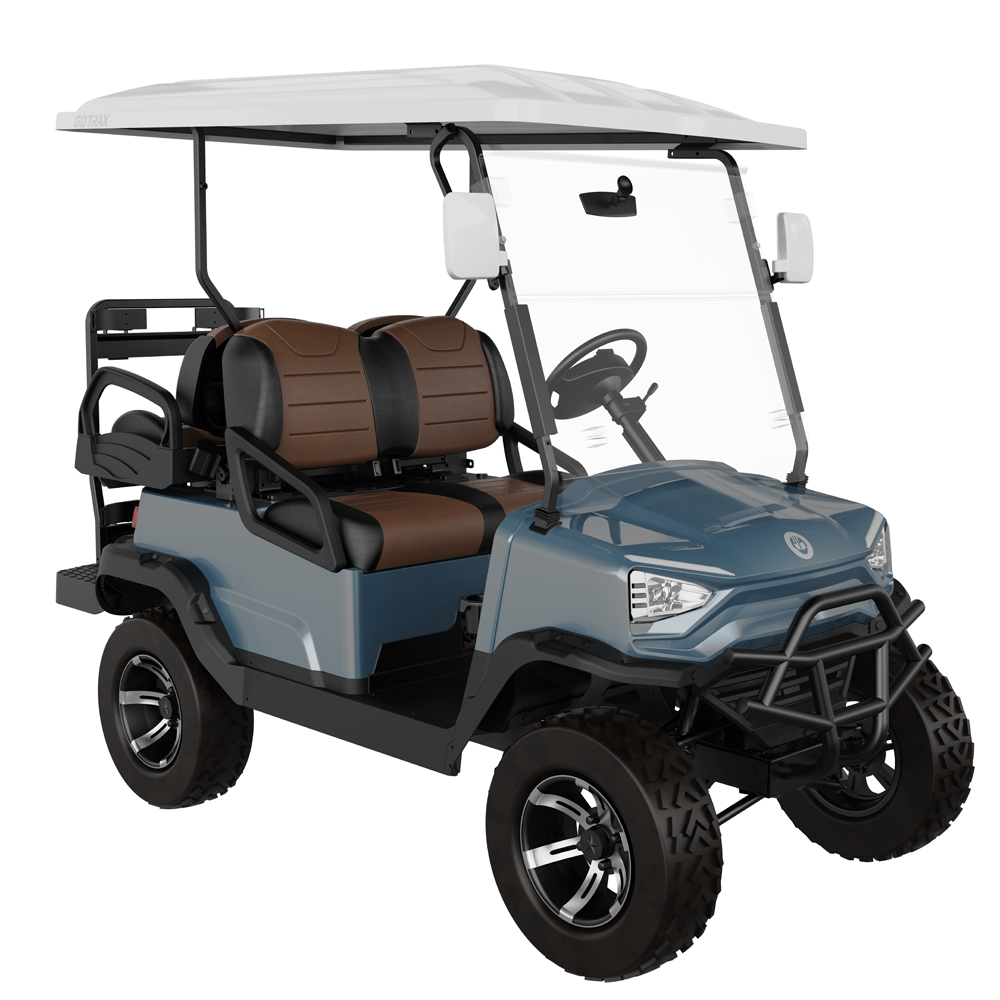

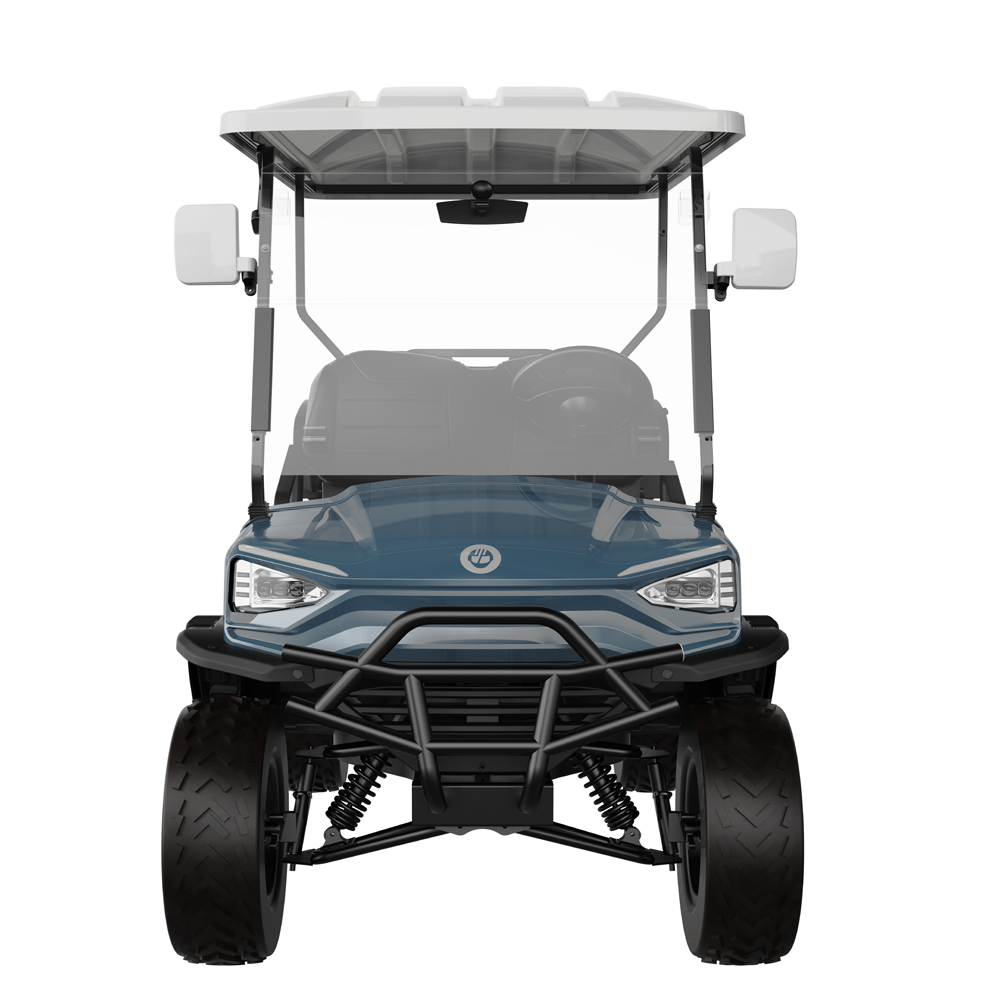

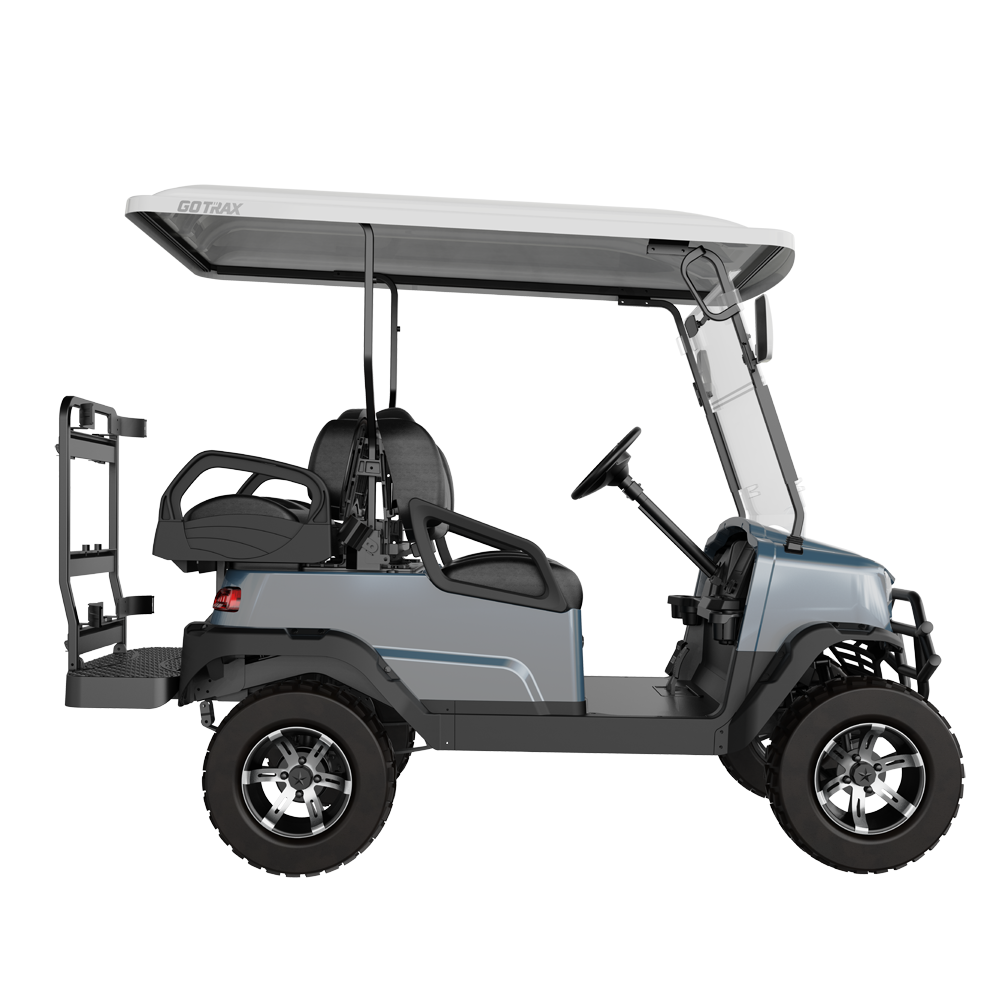

Champion TA 2+2 Blue

Category:
GENERAL SPECIFICATION
Battery 电池 : 48V 170AH
Motor 电机 : 48V AC  5KW KDS Motor
Controller 控制器 : 48V/350A AC Controller
Charger 充电器 : Wide voltage 110V-240V smart charger
Output current 25A
Accelerator 油门: Inductive 0-5V
Suspension 悬挂: Front double cross arm independent suspension/rear leaf spring suspension Overall dimensions 整车尺寸: 2886*1266*2070mm
Steering 转向系统: Self Compensating” Rack & Pinion”
Steering
Max. loading weight最大载重量: 400KG
Brakes 刹车: Rear wheel Mechanical Drum Brake &Mechanical parking Net weight 净重: 550KG
Passenger capacity 载客数: 4 Chassis and frame 底盘和车架: Aluminium alloy
Driving Distance 行驶距离: 65km Wheel base 轴距: 1720mm
Max. speed 最大速度: 30KM/h Front wheel tread 前轮轮距: 1065mm
Minimum turning radius
最小转弯半径:
3.5m Rear wheel tread 后轮轮距: 1035mm
Max. climbing ability
最大爬坡能力:
25% Tires 轮胎尺寸: 23*10-14 (Aluminium wheel)
Minimum ground clearance
最小离地间隙:
175mm Braking distance刹车距离: ≦5
装柜量:
Loading capacity
18units/40HQ
STANDARD CONFIGURATION
Windshield 挡风玻璃: Foldable Windshield
Dashboard 仪表盘(显示内容): Colorful TFT display.  (Speed display and dynamic speed display, turn signal indicator, battery power display, total mileage, subtotal mileage, and kilometer mile switching)
Score card holder 记分卡夹: on steering wheel
Body 车身: PP+GF
Roof 车顶: PP
Mirror Supply 后视镜: Left and right rearview mirrors/in-car mirrors
Steering system 转向系统: Self Compensating” Rack & Pinion”
Steering
Brake system 刹车系统: Rear wheel Mechanical Drum Brake &Mechanical parking
LED Light System LED车灯: Front LED headlamp + running lamp + turn signal lamp+strip spotlight, rear brake lamp + running lamp
Steering Column 转向柱: With combination switch (turn signal switch, horn switch and strip spotlight switch)
Accelerator 油门: Adjustable Inductive Accelerator Continuously Variable Speed System
Driving mode 驾驶模式: Electromechanical integration
Rear axle 后桥: Integrated, Gear ratio12.31:1
Rear 后面带有的配件: Rear armrest, ball bag rack and station plate
