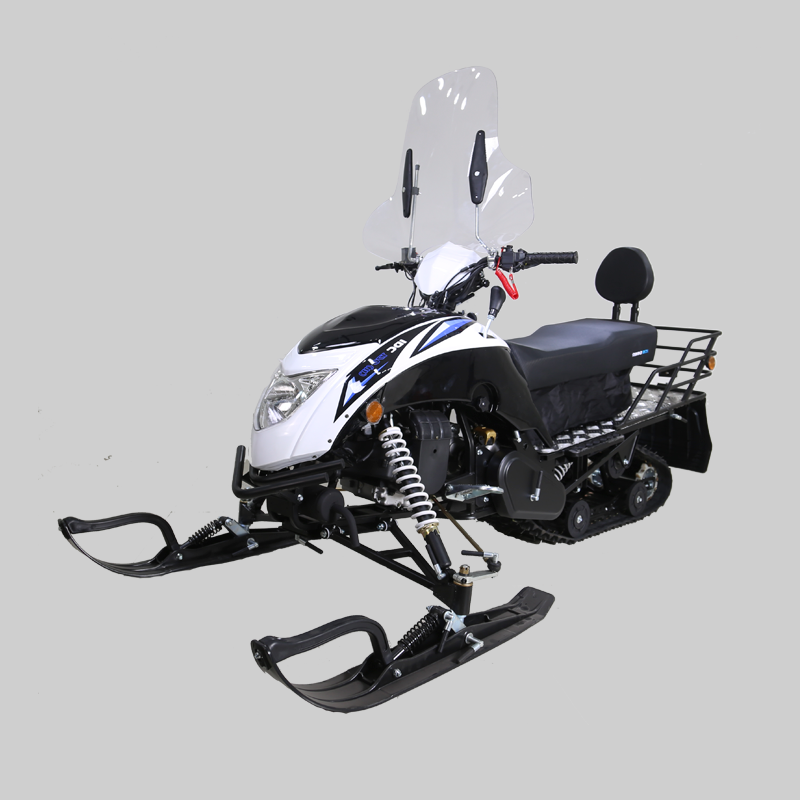

Item No | Snowfox III |
Engine type | GY6 170cc |
Max power/RPM(kw/r/min) | 7.6/7000 |
Max torque/RPM(N.m/r/min) | 10.2/5000 |
Fuel consumption | 5.5L/100km |
Tank capacity | 4.5L |
Culth | Automatic |
Supply sustem | Carburetor |
Brake control(rear) | Hand control |
Way of drive | Chain and rubber track drive |
Start type | Electrical and hand start |
Max speed | 45-50km/h |
Overall size (L*H*W) | 2500*950*1150mm |
Dry weight | 130kg |
Load,Max | 170kg |
Brake system (rear) | Disc brake |
Climb ability | 30°-35° |
Caterpillar band overall length | 2150mm |
Caterpillar band width | 380mm |
Press snow deepth | 5-8cm |
Press snow length | 880mm |
Skid L*W | 920×150mm |
Loading capacity | 30pcs/20’GP 83pcs/40’HQ |
