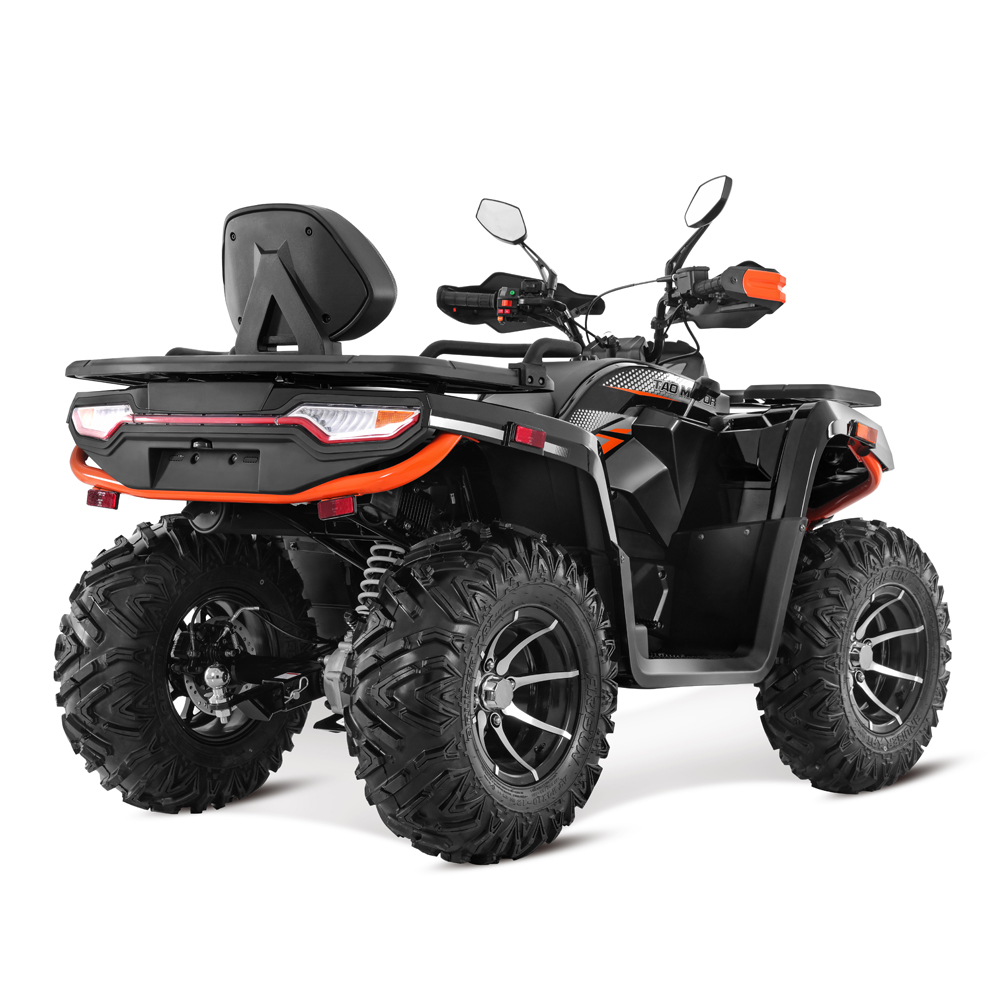

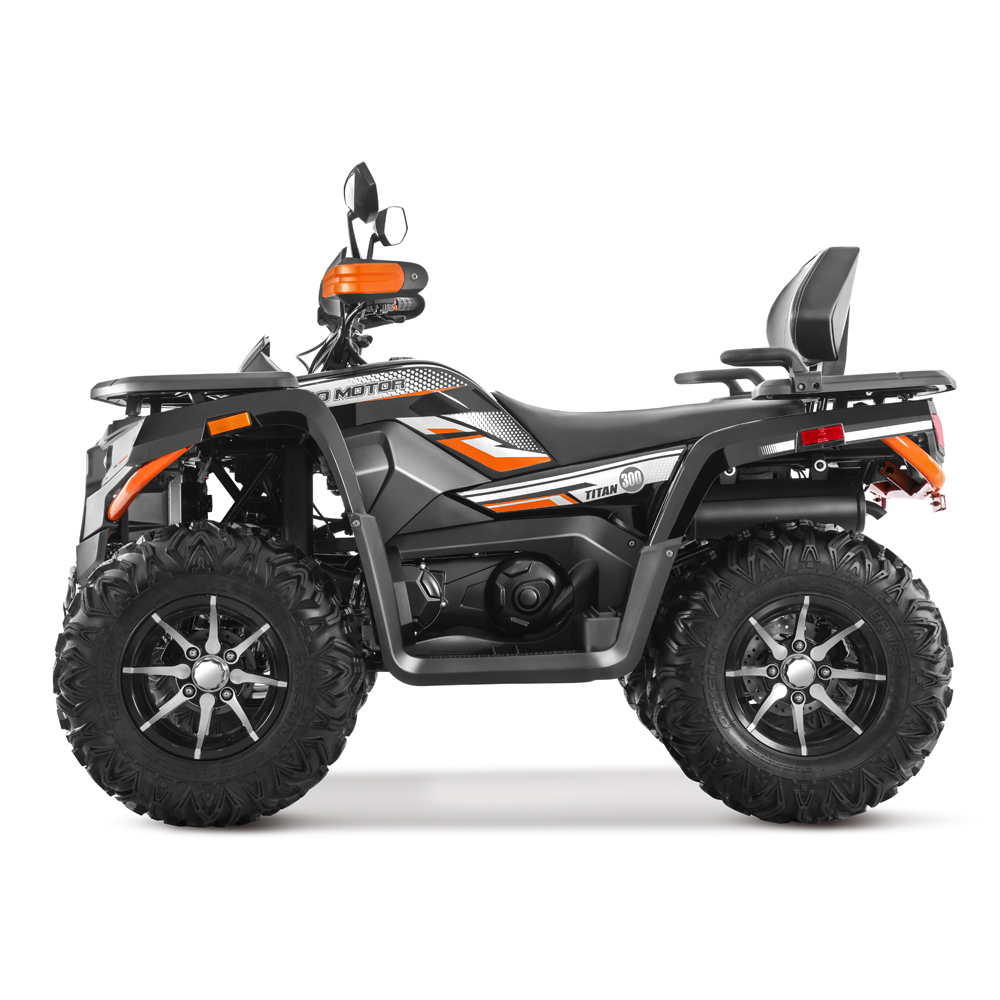

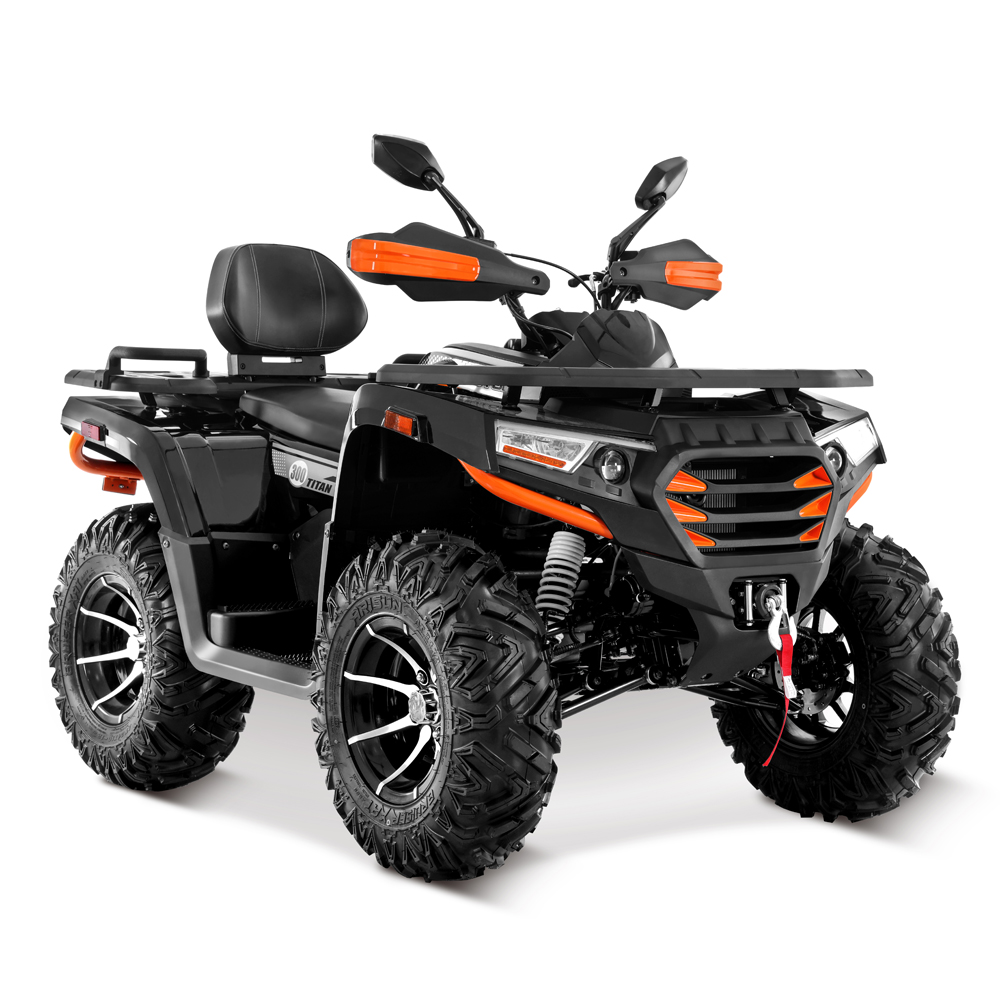

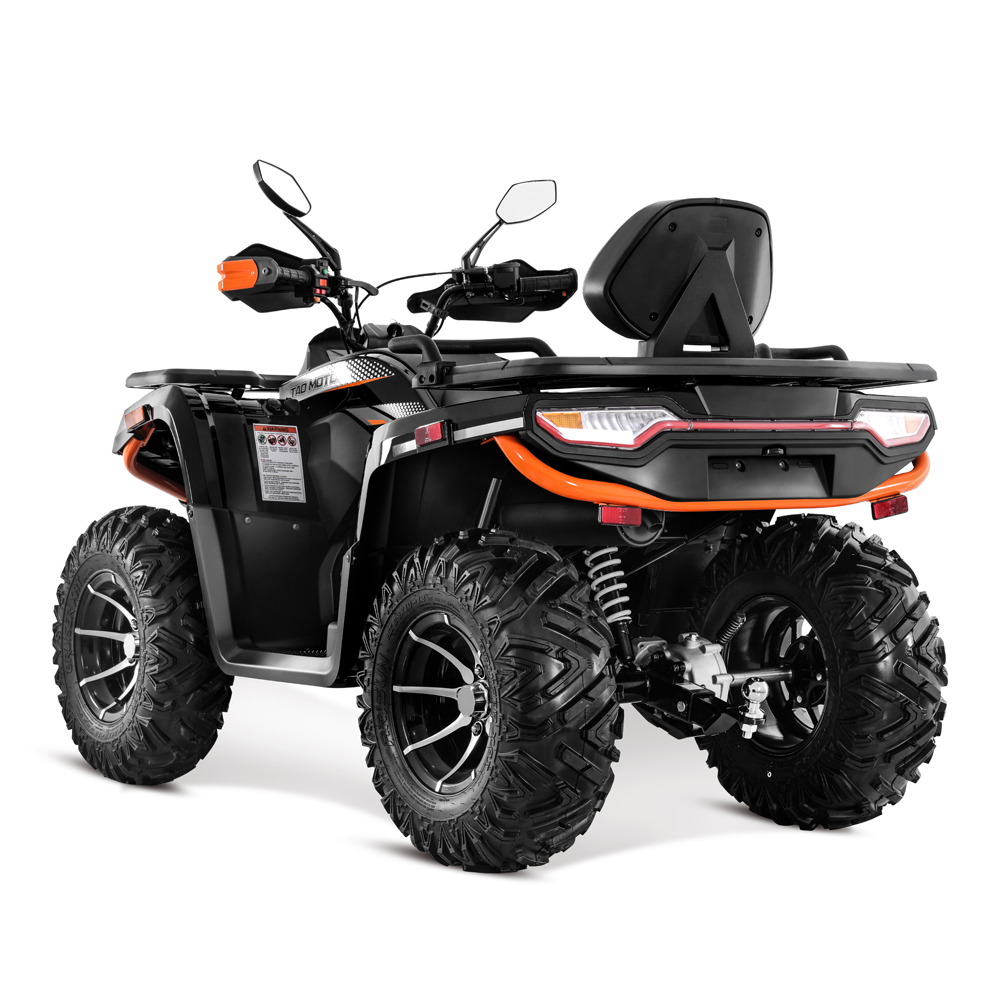

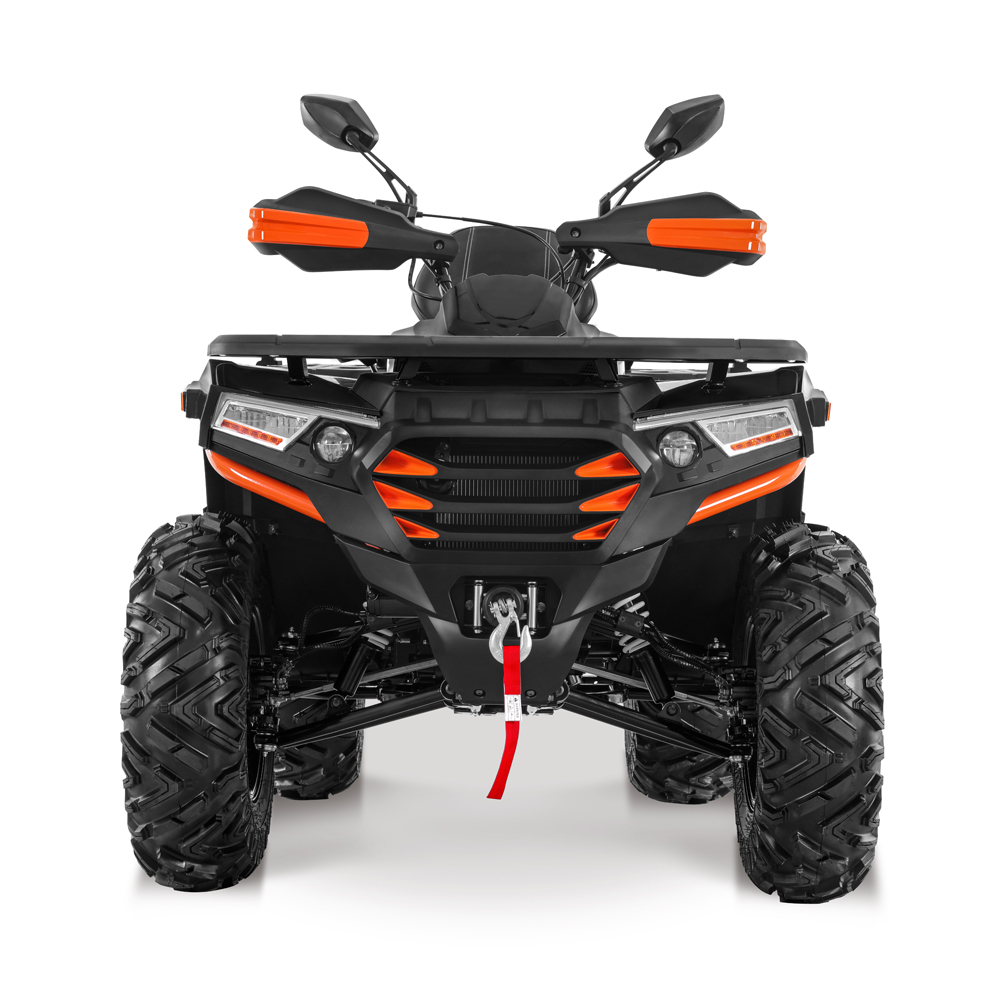

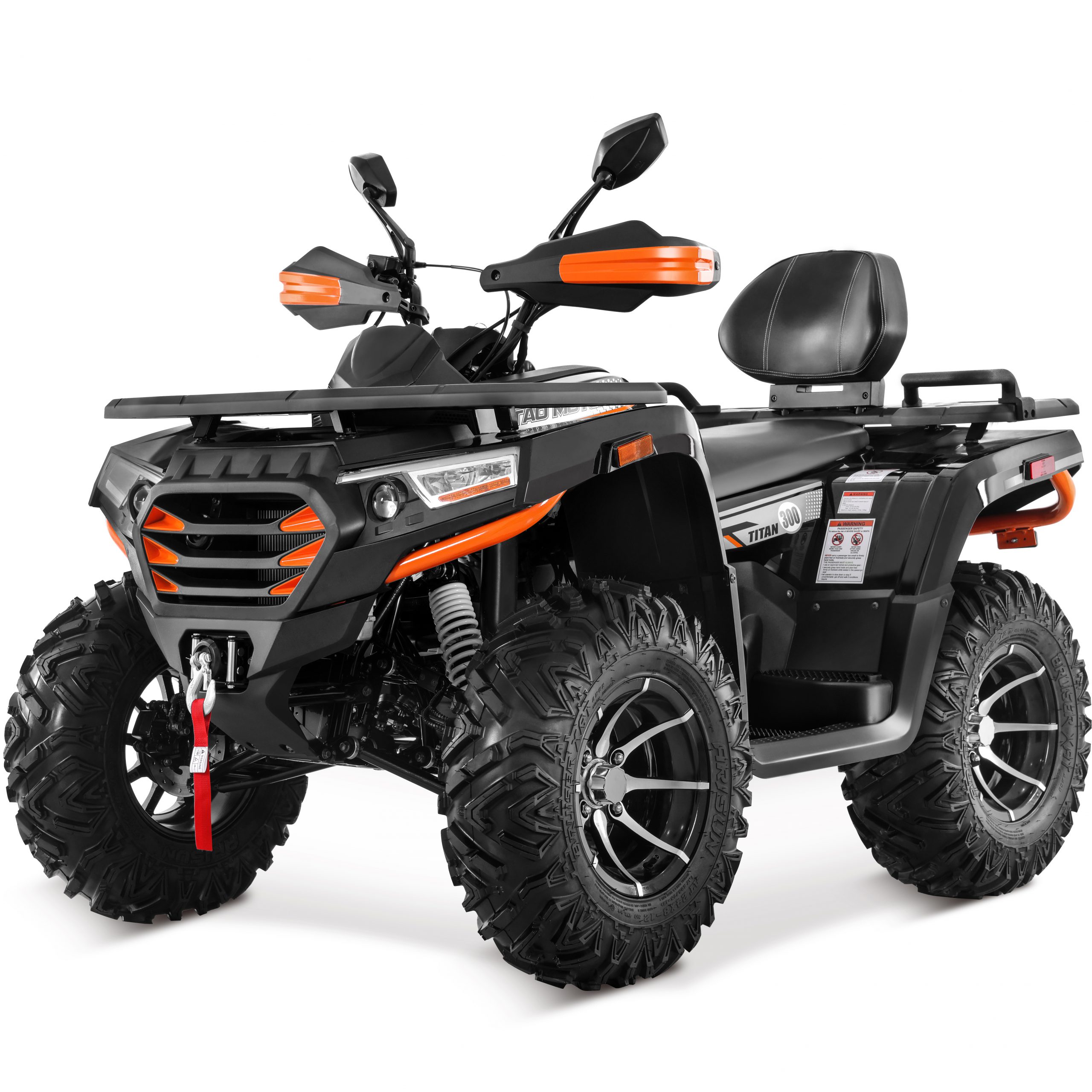

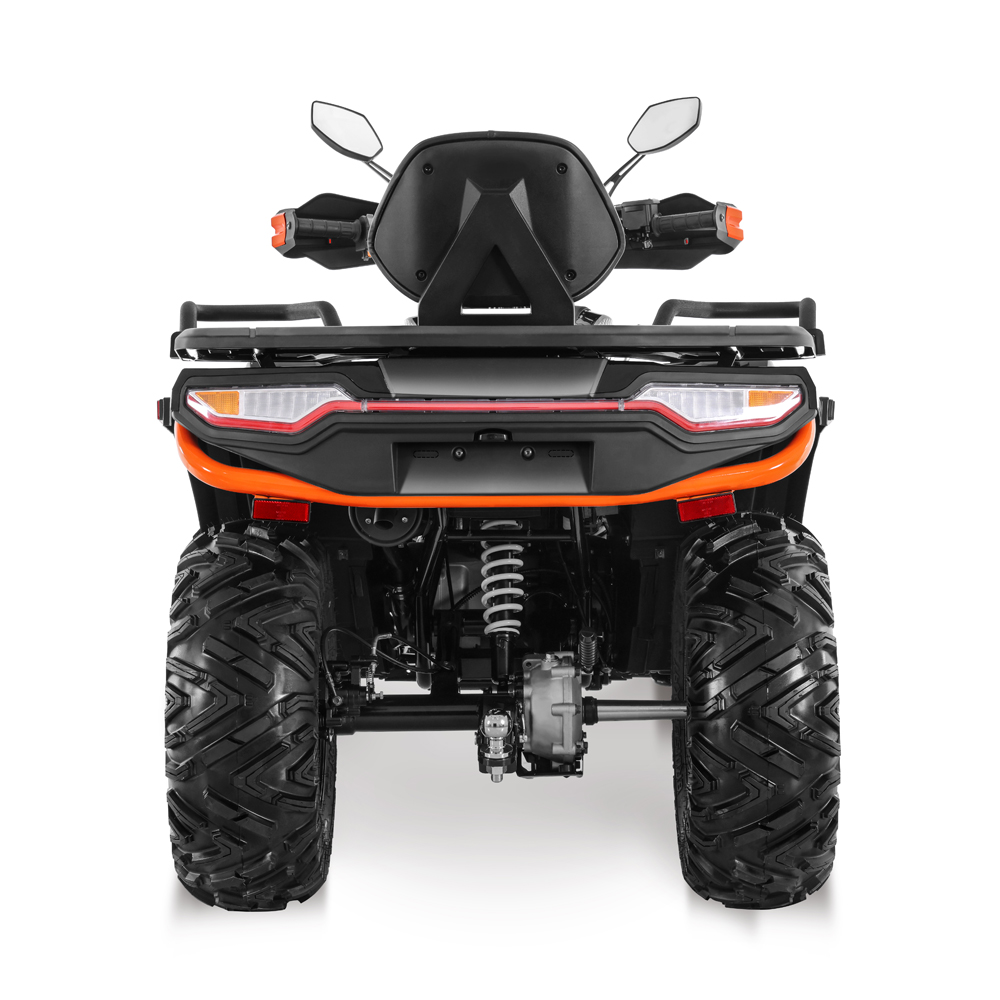

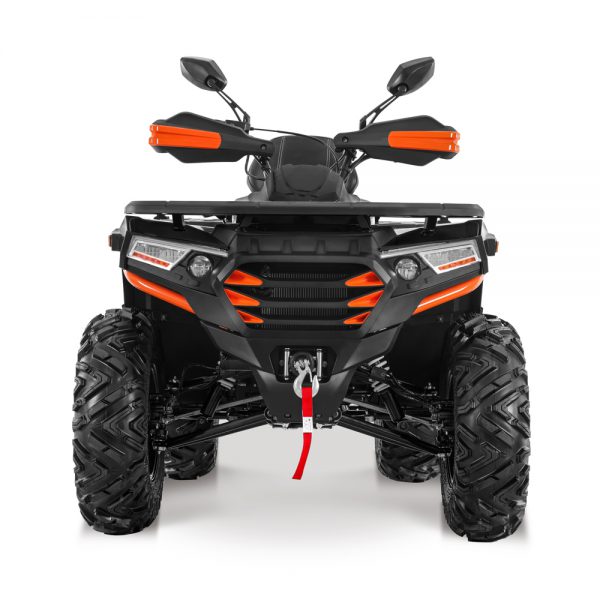

New Launch Big Adult ATV

  1. 270cc Engine with EFI system

  2. Big Size Designed for Ault

  3. Equipped with Front Winch

  4. 12Inch Tire with Alloy Rim

  5.  DOuble Alarm Controller

  6.  T3B Coming SOON

Engine Type 270cc,Water- cooled,4-stroke,1-cylinder, EFI
Starting Electric start
Transmission L-H-N-R (H-speed and L-speed )
Drive Train Shaft Drive
Max. Torque 24.5Nm/5000r/min
Max. Power 17kw/7000r/min
Suspension/Front Independent double swing arm
Suspension/Rear Single swing arm
Brakes/Front Ventilated Hydraulic disc
Brakes/Rear Ventilated Hydraulic disc
Tires/Front 24×8-12  radial
Tires/Rear 24×10-12  radial
L x W x H 1920*1090*1190mm
Seat Height 860mm
Wheelbase 1205mm
Ground Clearance 200mm
Battery 12V/12Ah
Fuel Capacity 14L
Dry Weight 260kg
Max. Load 200kg
Package Size 1960*1120*820mm
Max. Speed 85km/h
Turning Tadius 2.5m
Max Climbing ≥17°
Brake distance 30km/h≤5.9m
Loading Quantity ( SKD ) 12pcs/20’GP;36pcs/40HQ
