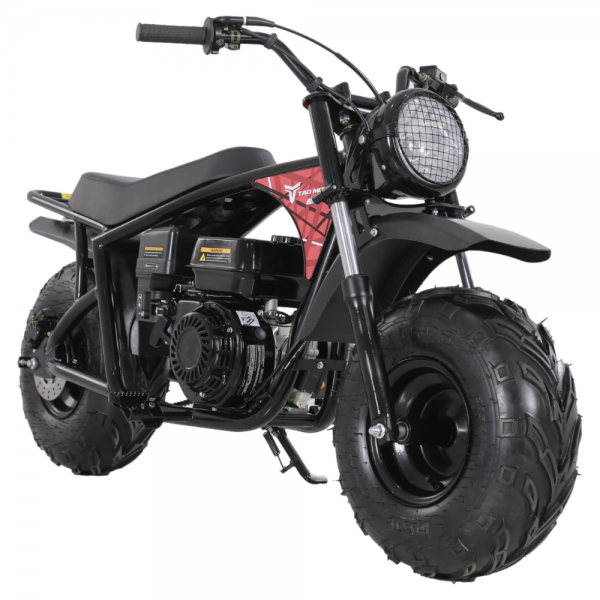

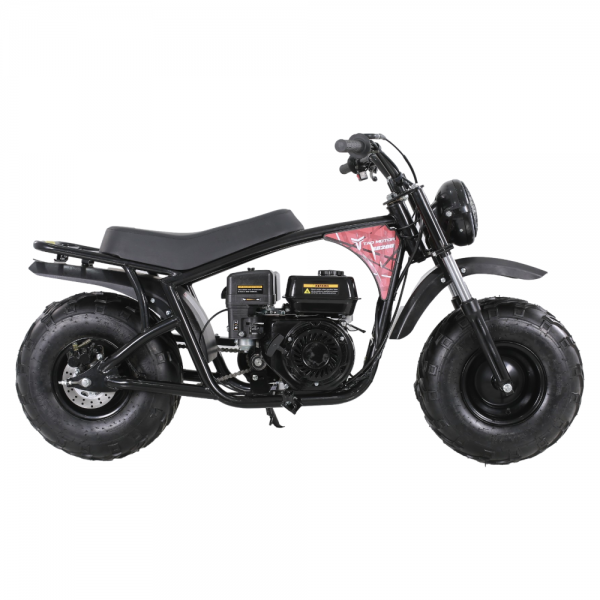

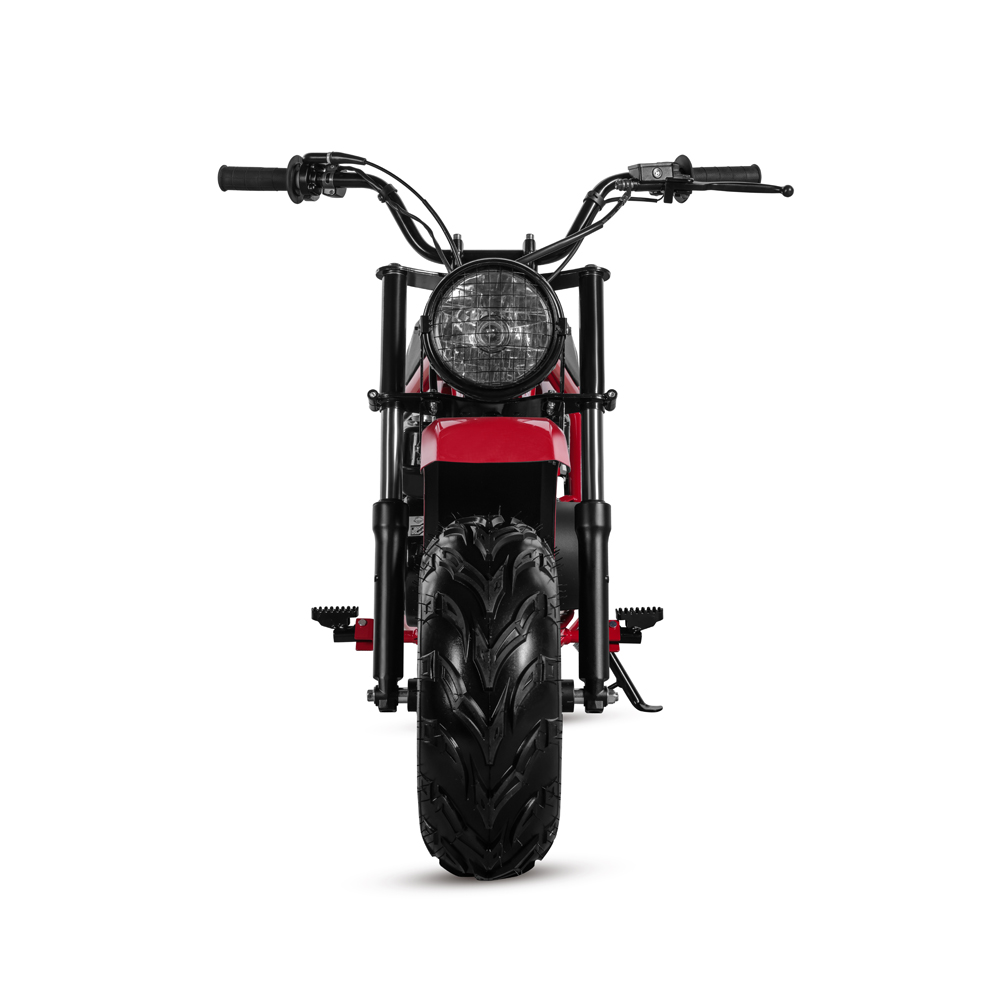

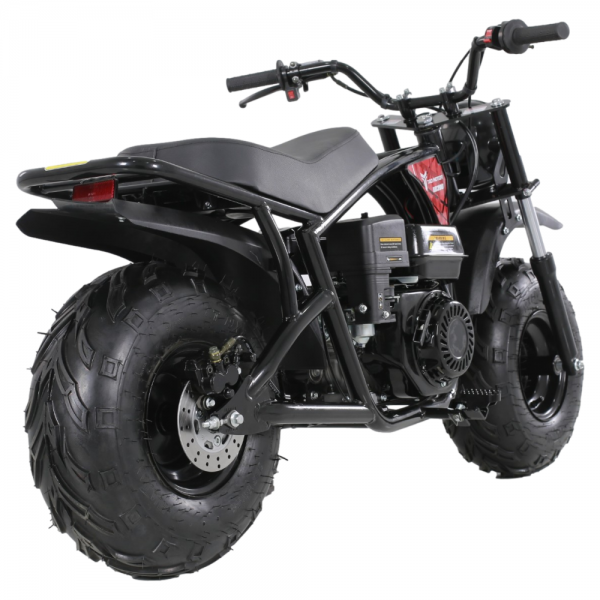

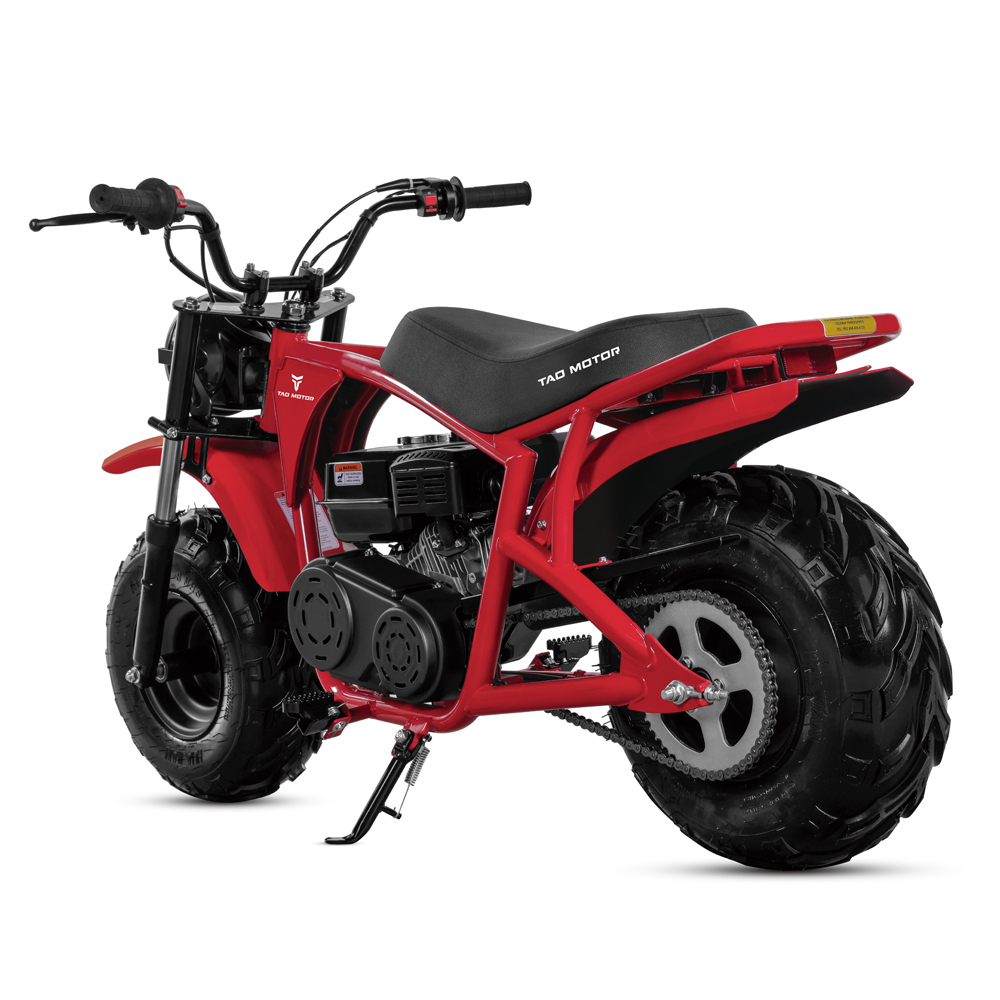

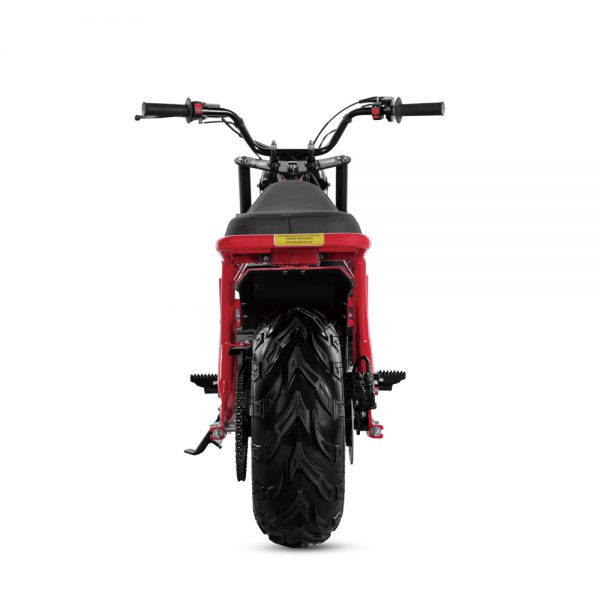

| Engine Type: | 196cc, Air cooled, 4-stroke , 1-cylinder |
| Compression Ratio: | 8.5:1 |
| Ignition: | Transistorized Ignition CDI |
| Starting: | Recoil start |
| Transmission: | Automatic |
| Drive Train: | Chain drive |
| Max. Power: | 4kw/3600r/min |
| Max. Torque: | 12Nm/2500r/min |
| Suspension/Front: | Independent double shock absorber |
| Suspension/Rear: | Low pressure tires Single shock absorber |
| Brakes/Front: | No |
| Brakes/Rear: | Disc Brake |
| Tires/Front: | 19×7-8 |
| Tires/Rear: | 19×7-8 |
| Overall Size (L*W*H) | 1675*740*930mm |
| Wheelbase: | 1260mm 670mm |
| Ground Clearance: | 150mm |
| Fuel Capacity: | 4L 100mm |
| Engine Oil Capacity: | 0.35L 12V4Ah |
| Dry Weight: | 72kg |
| G.W. | 87kg |
| Max. Load: | 91kg |
| Package Size: | 1415×455×770mm |
| Max. Speed: | 37km/h |
| Loading Quantity: | 123pcs/40´HQ |
